Cold And Hot Formed Circular Hollow Sections
Circular Hollow Sections (CHS) include both cold-formed and hot-finished tubular profiles. Cold-formed sections are produced at ambient temperatures and are cost-effective for many applications, while hot-finished sections are formed at elevated temperatures, offering uniform strength in all directions and superior torsional resistance.
Note: To use these calculations, open the page on your desktop to access the app link.
Scroll to see all calcs!
Calculations
Description
Symbol Name
Value
Unit
Comment

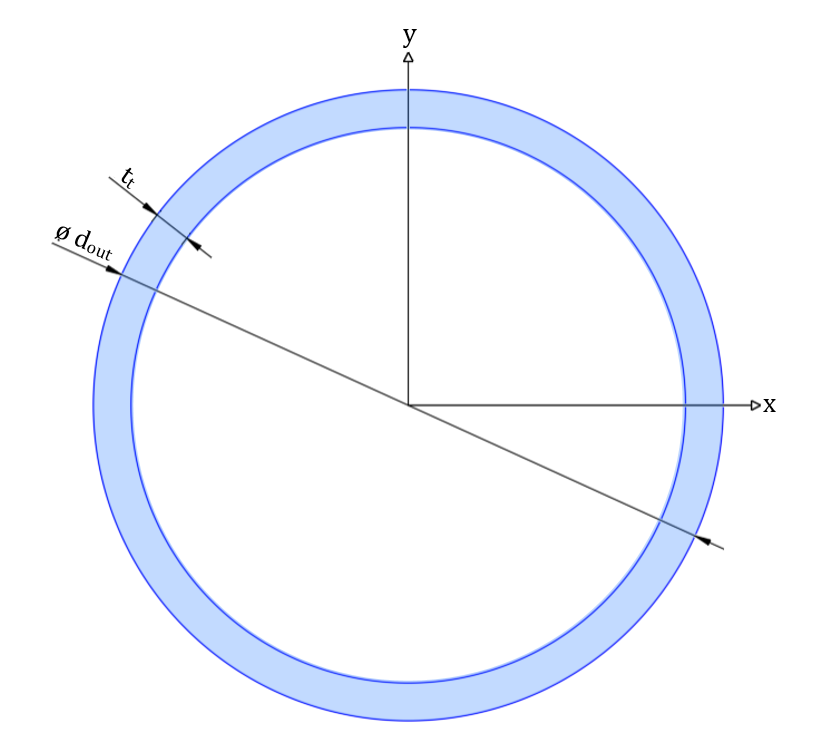

Cold Formed Circular Hollow Sections
Outside diameter
33.70
Section thickness
3.00
Material Properties
Young's modulus
210000
Poisson's ratio
0.30000
Density
7850.00
Shear modulus
80769.2
Calculations
Area of section
289.34
Mass per metre length
2.27
Ratio for local buckling
11.23
Second moment of area
34413.1
Radius of gyration
10.91
Elastic section modulus
2042.32
Plastic section modulus
2836.47
Torsional constant
68826.2
Torsional section modulus
4084.64
